High-Precision Aluminum Alloy Manual XYR-Axis Stage 60mm

China High-Precision Aluminum Alloy Manual XYR-Axis Stage 60mm with High-Quality, Leading High-Precision Aluminum Alloy Manual XYR-Axis Stage 60mm Manufacturers & Suppliers, find High-Precision Aluminum Alloy Manual XYR-Axis Stage 60mm Factory Exporter.

Share
Send Inquiry
Category
Manual Positioning Stages

Description

Product Attributes

Model No.: LSP60-LM

Product Description

Manual Multi-Axis Stages XYZ/Rotary

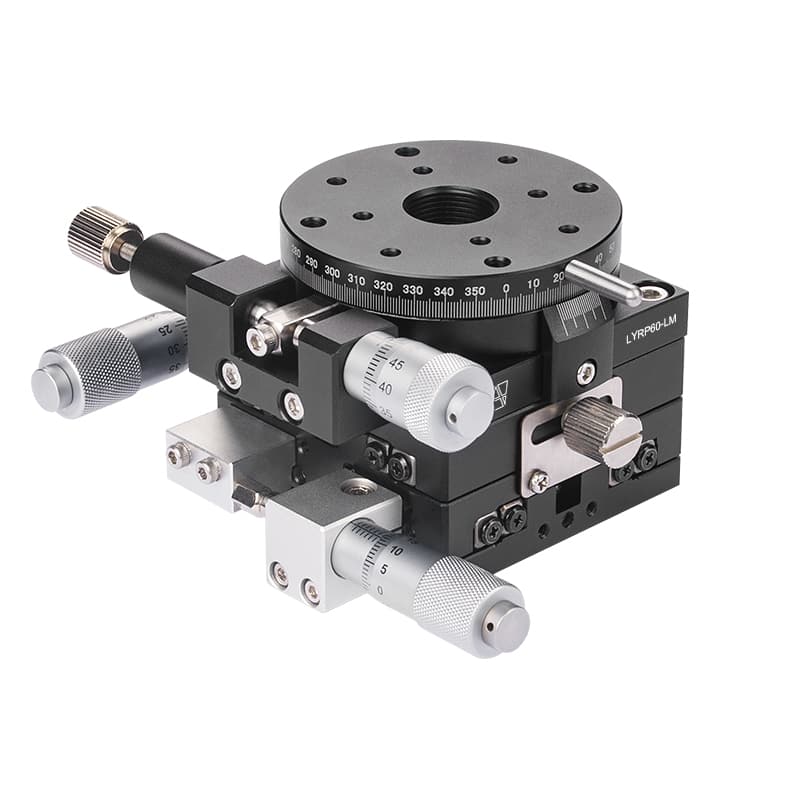

In the welding operation of microelectronic chips, the manual XY-axis translation and rotation combined stage is a core auxiliary tool. Its ø60mm stage is suitable for small chips; the aluminum alloy, after anodized black treatment, is lightweight, wear-resistant and stain-resistant. Driven by a micrometer, it enables precise XY-axis displacement. With 360° rotation combined with ±5° fine adjustment, it can flexibly align with welding points. The 58.8N load capacity can stably support the chips. By fine-tuning the position and angle, workers can ensure the precise placement of solder, reduce welding deviations, significantly improve the qualification rate and operation efficiency of microelectronic chip welding, and meet the fine processing needs of miniaturized chips.



Manual XYR-Axis Stage 60Manual XYR-Axis Stage 40Manual XYR-Axis Stage 125Manual XYR-Axis Stage 100Manual XYR-Axis Stage 90Manual XYR-Axis Stage 80
