Manual X-axis Long-stroke Dovetail Groove Stage 25x42 mm
Manual X-axis Long-stroke Dovetail Groove Stage 25x42 mm
China Manual X-axis Long-stroke Dovetail Groove Stage 25x42 mm with High-Quality, Leading Manual X-axis Long-stroke Dovetail Groove Stage 25x42 mm Manufacturers & Suppliers, find Manual X-axis Long-stroke Dovetail Groove Stage 25x42 mm Factory Exporter.
Send InquiryDescription
Product Attributes
Model No.: LWX25
Product Description
A dovetail rack and pinion long stroke stage (X-axis).[Features]・ The rail type consisting of a rack rail and a pinion gear・ The tap seat type that can be attached from the back・ Multiple blocks with a stage surface of 40 mm can be mounted・ The differential micrometer of block handle can be selected[Applications]・ Adjustment of cameras, microscopes, sensors and Optical Components・ Positioning of production, assembly and inspection processes related to semiconductors and measuring instruments.
| Model Number | Table Size(mm) | L(mm) | G(mm) | nxF | N | Travel(mm) | Load capacity | Parallelism(mm) | Weight(kg) |

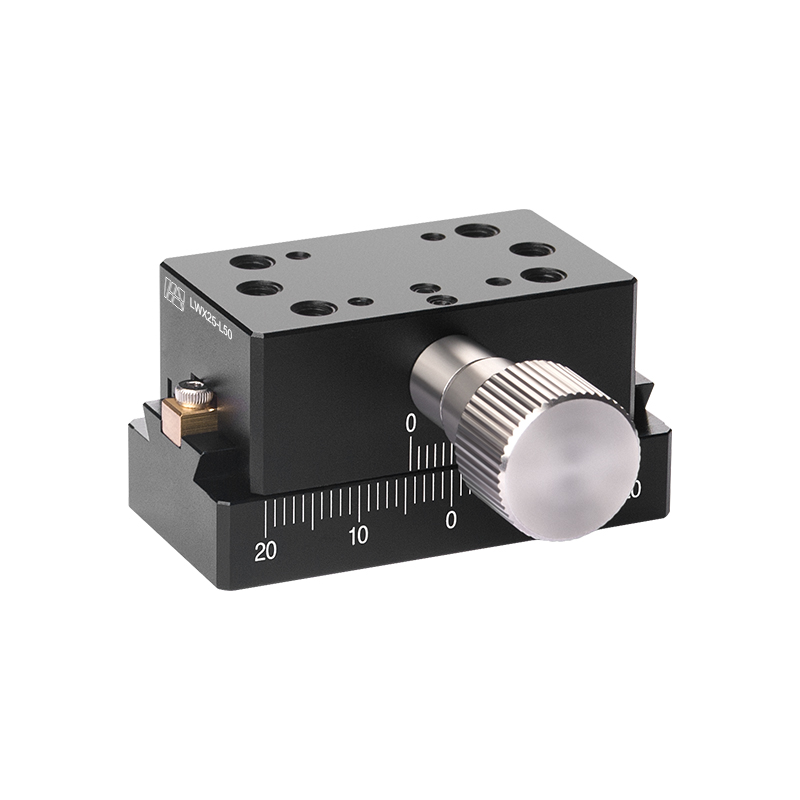

| SLWX25-L50 | 25x42 | 50 | 7.5 | 1x35 | 4 | 30 | 29.4N(3kgf) | 0.05 | 0.12 |

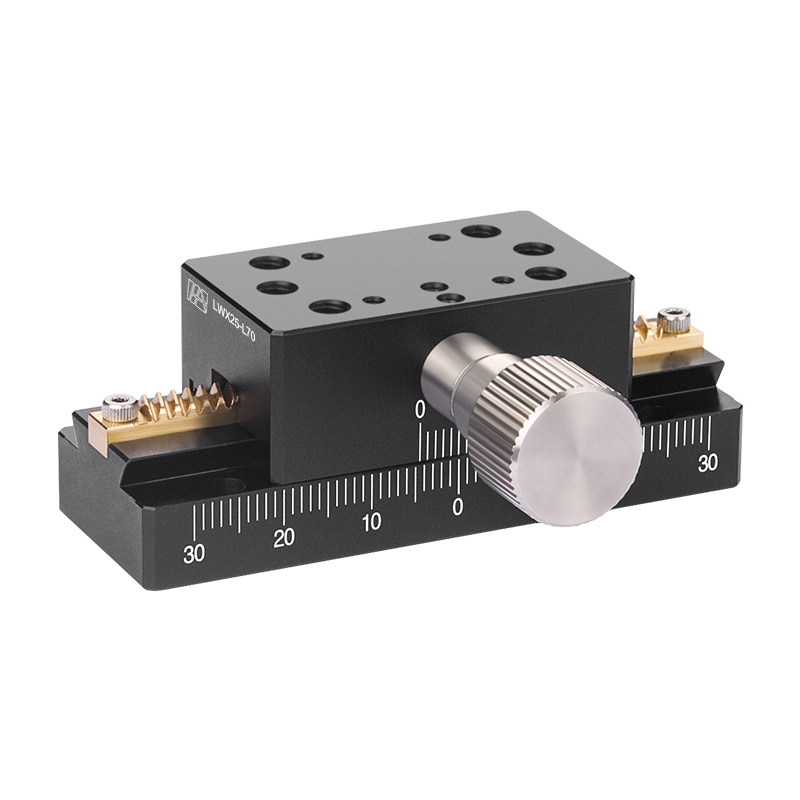

| SLWX25-L70 | 70 | 10 | 2x25 | 6 | 50 | 0.05 | 0.13 | ||

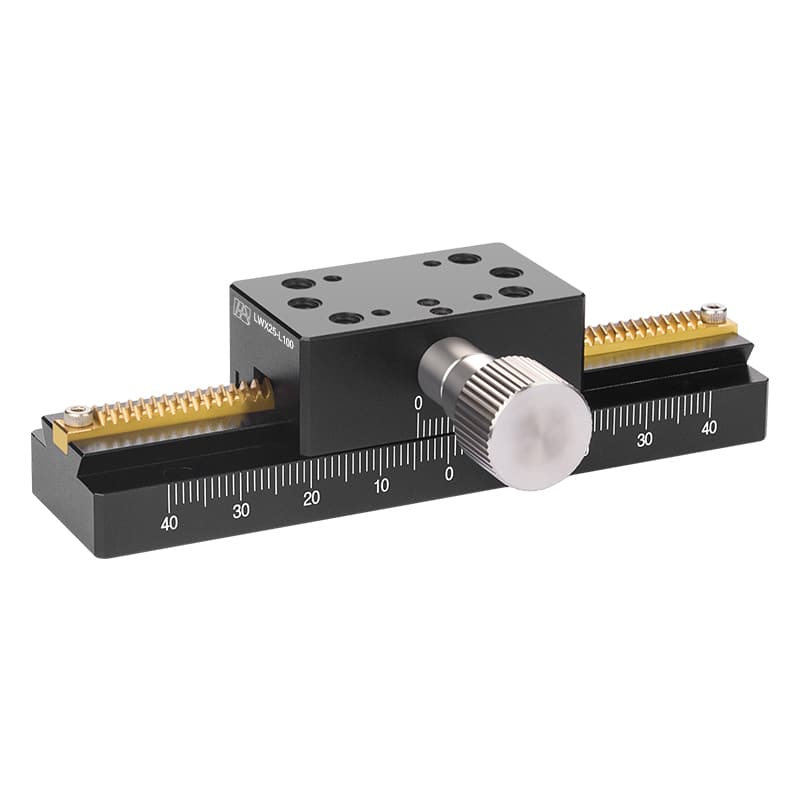

| SLWX25-L100 | 100 | 12.5 | 3x25 | 6 | 80 | 0.05 | 0.16 | ||

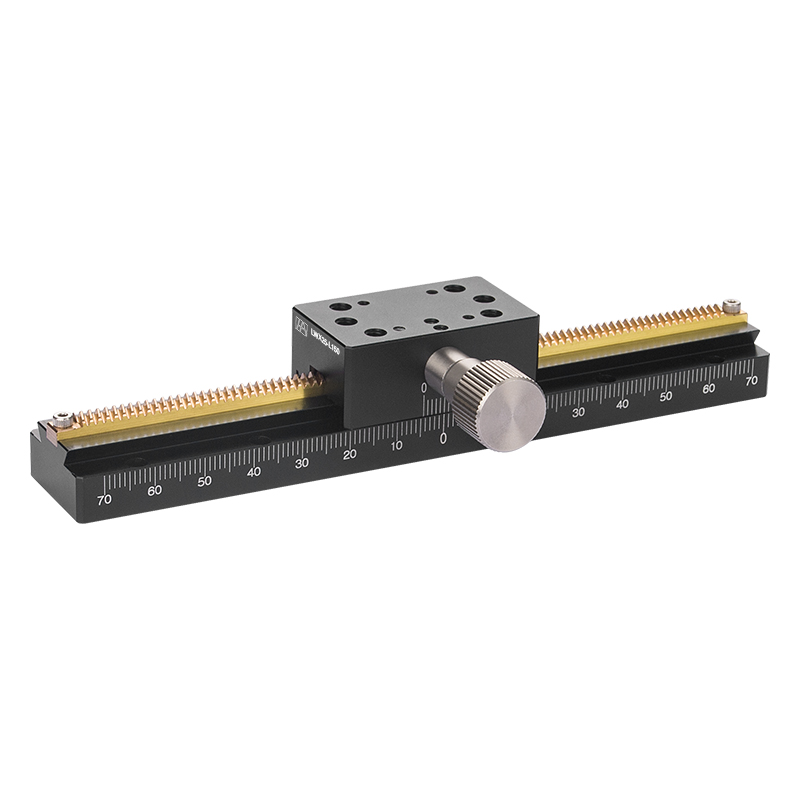

| SLWX25-L150 | 150 | 12.5 | 4x25 | 12 | 130 | 0.1 | 0.21 | ||

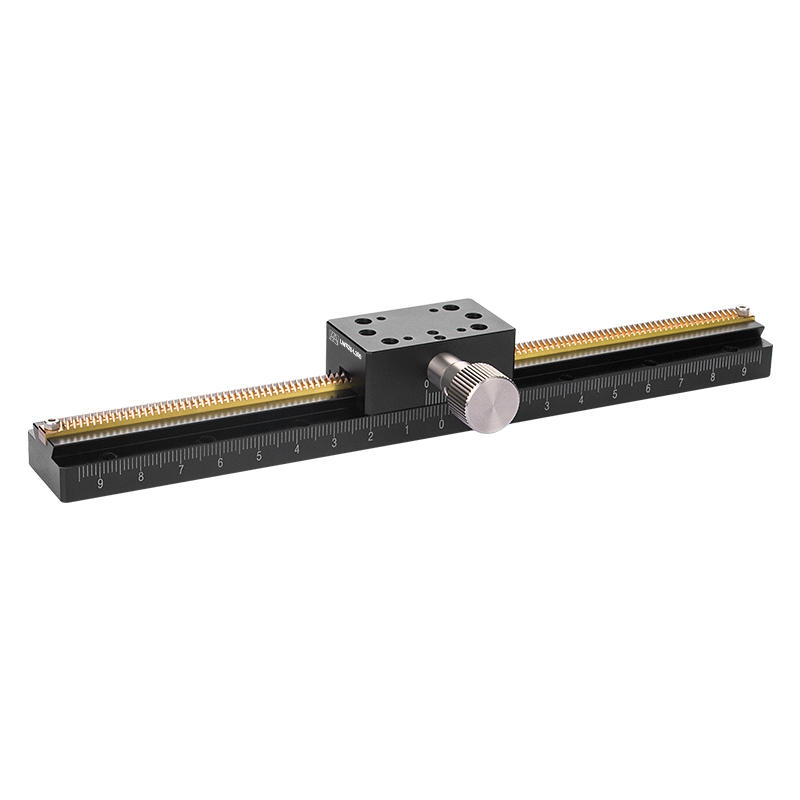

| SLWX25-L200 | 200 | 12.5 | 5x25 | 16 | 180 | 0.1 | 0.25 |
