Model No.: LWZ80

Product Description

Manual Z-Axis Stages - Dovetail, Rack & Pinion, Long Stroke

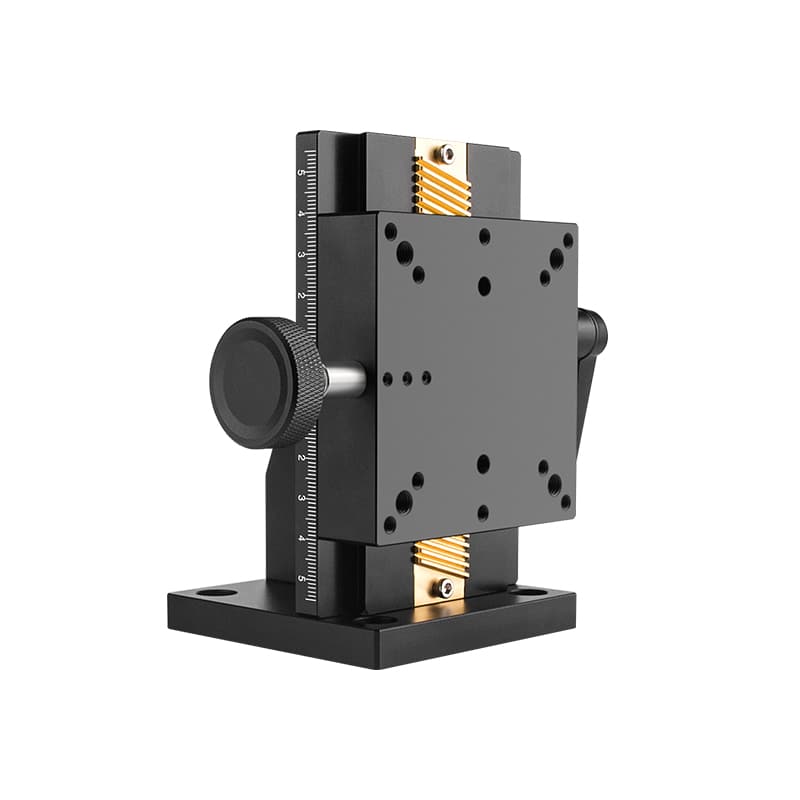

This Z-axis manual stage is crafted from premium aluminum alloy, featuring a dovetail groove structure for stable and precise vertical movement. The stage platform measures a precise 80×80mm, providing ample space for mounting small instruments and workpieces.

Driven by a rack-and-pinion mechanism, it allows smooth manual adjustment with a stroke range of 70–449mm and a rated load capacity of 98N. Its robust construction ensures reliable performance, making it ideal for laboratory testing, equipment calibration, and other precision adjustment scenarios.

Model Number Table Size(mm) L(mm) Travel(mm) Load capacity Weight(kg)
SLWZ80-L120 80x80 120 70 98N(10kgf) 0.94
SLWZ80-L150 150 100 1.02
SLWZ80-L250 250 199 1.49
SLWZ80-L350 350 299 1.92
SLWZ80-L500 500 449 2.59

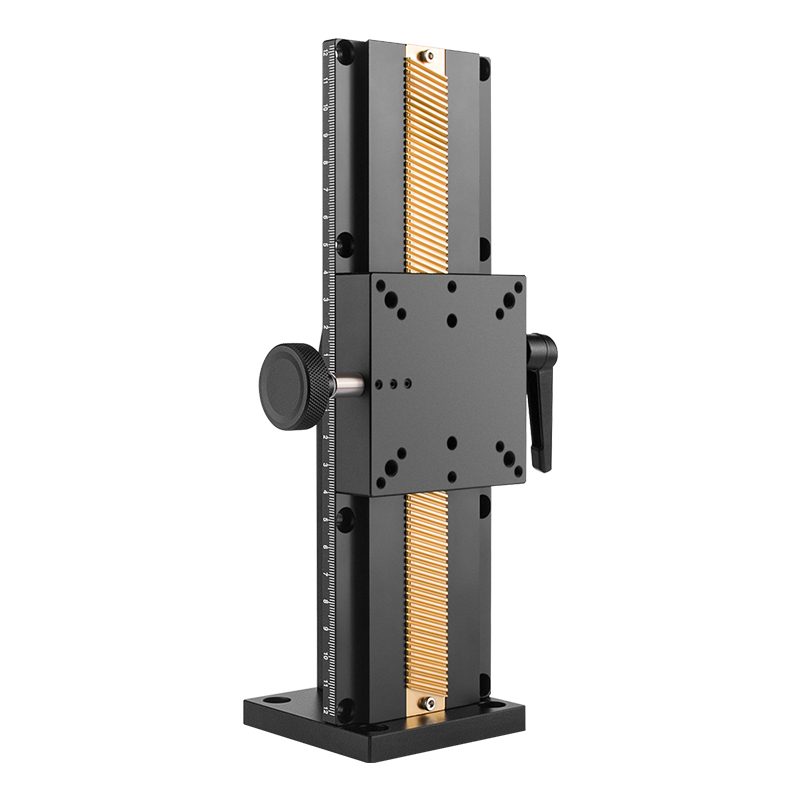

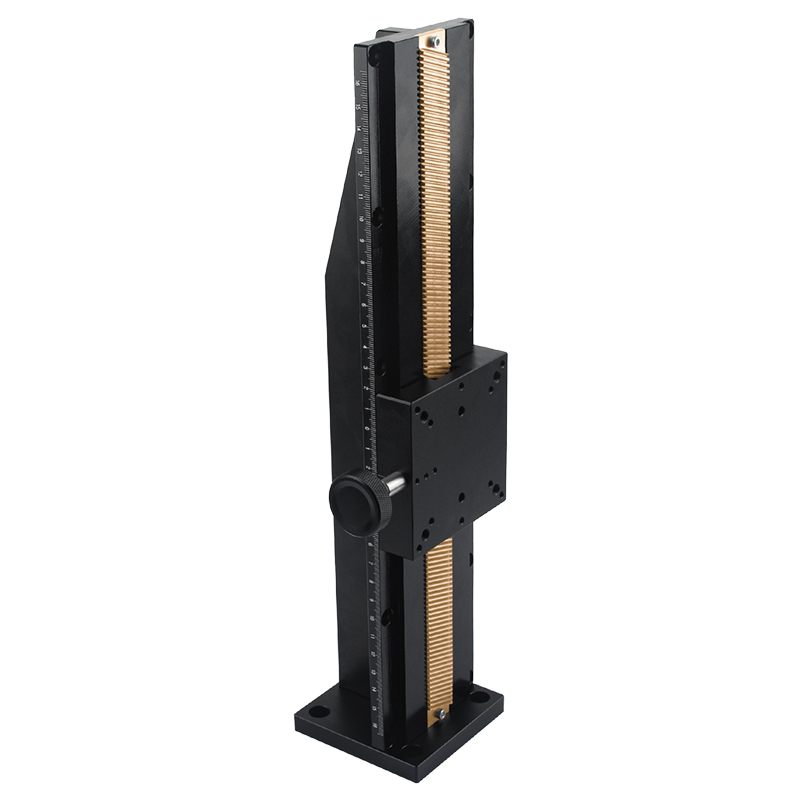

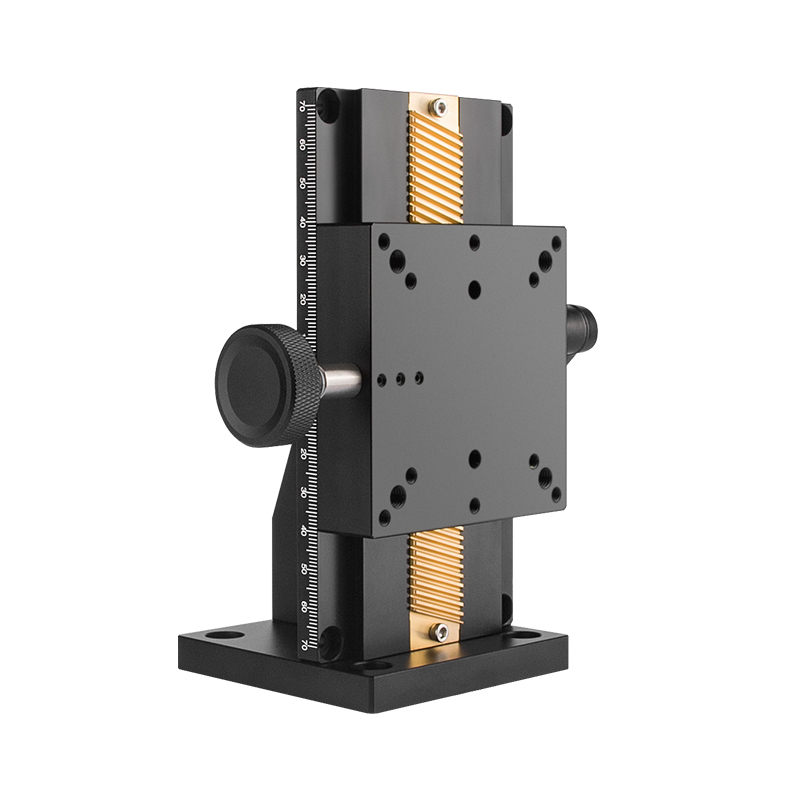

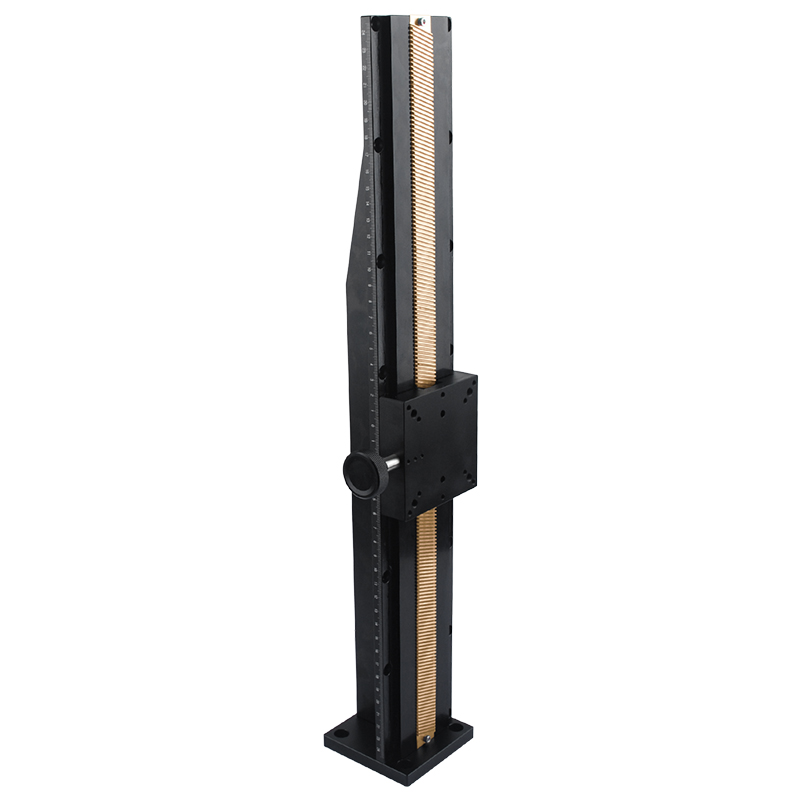

Z-axis Dovetail Groove Stage 120Z-axis Dovetail Groove Stage 150Z-axis Dovetail Groove Stage 250Z-axis Dovetail Groove Stage 350Z-axis Dovetail Groove Stage 500
