Product Description

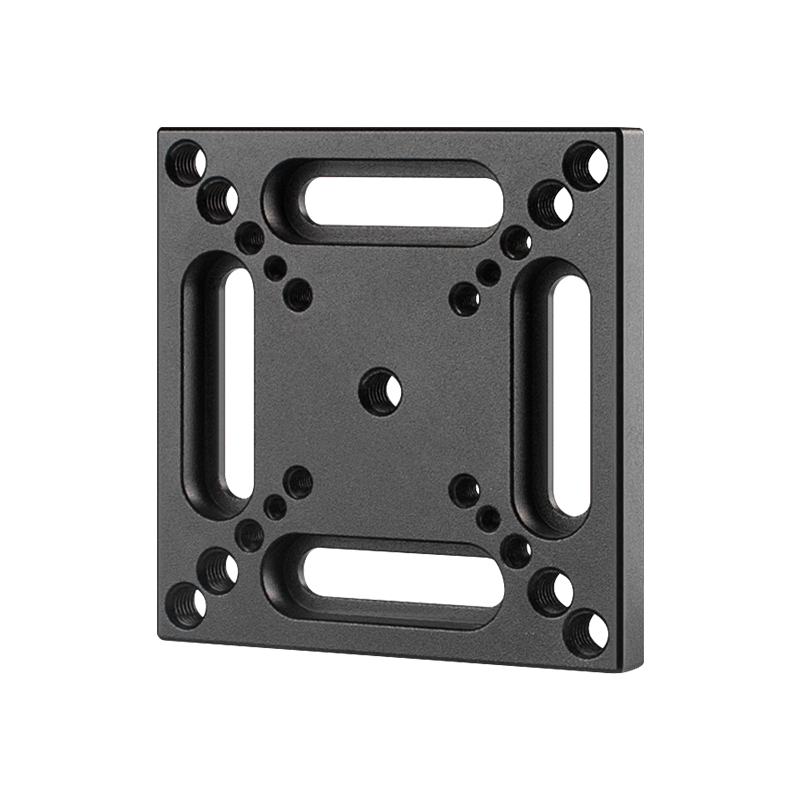

Optical Adapter Plate
Base plates for manual stages are flat components used to provide stable support for positioning systems in various machinery and equipment. They serve as the foundation for manual stages, allowing precise adjustments and movements in applications such as assembly and testing. These plates are designed for durability and accuracy, ensuring that the mounted components remain securely in place during operation.
| OUTLINE DIMENSION | CENTRE OPENING | THICKNESS | MATERIAL |

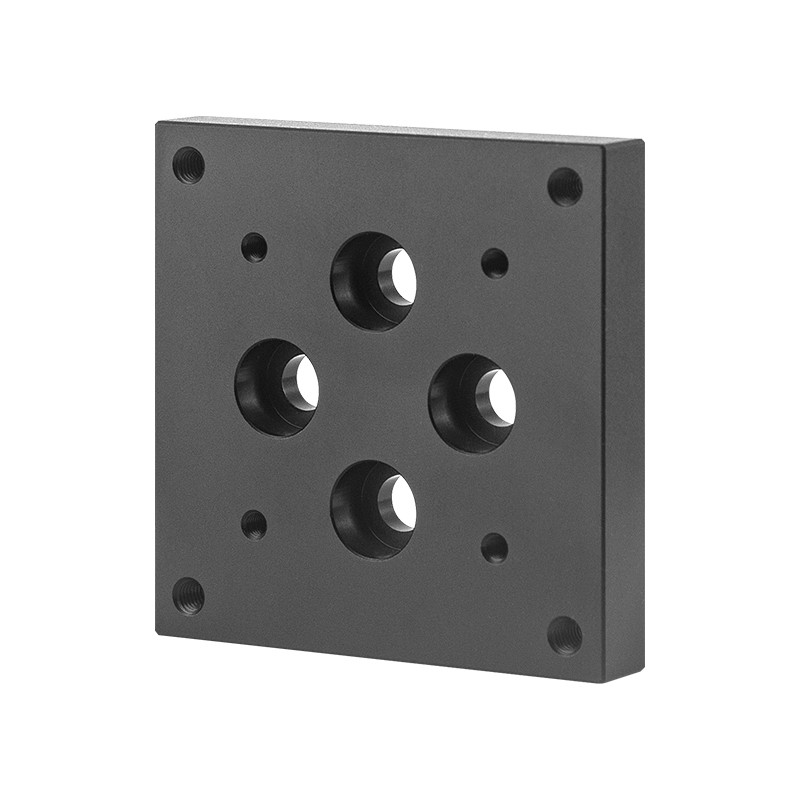

| 60*60mm | / | 10mm | Aluminum Alloy |

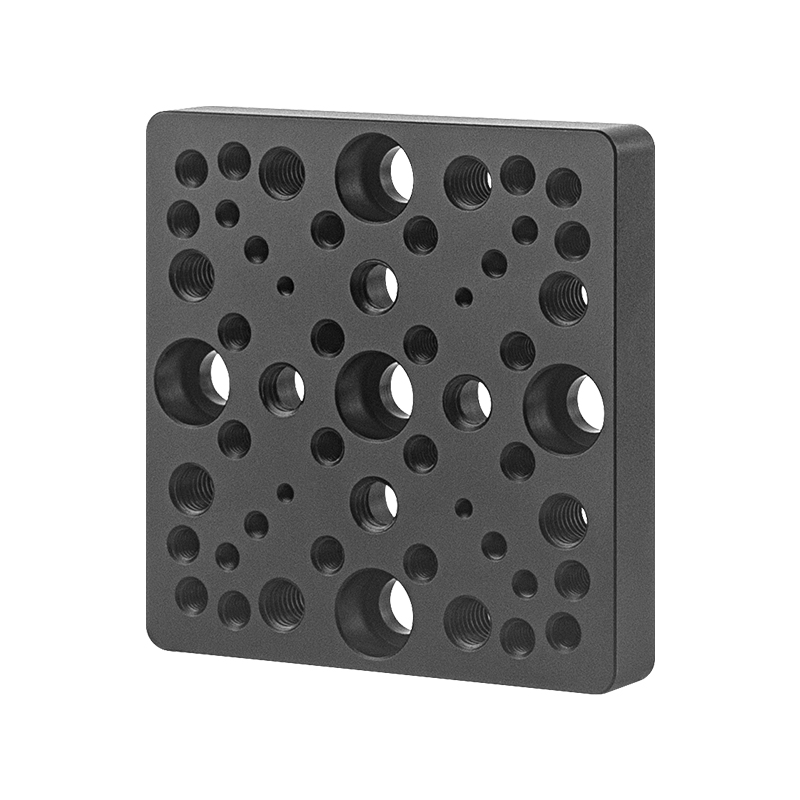

| 63.5*63.5mm | M6 | 10mm | Aluminum Alloy |
| 64*34mm | M6 | 6.5mm | Aluminum Alloy |

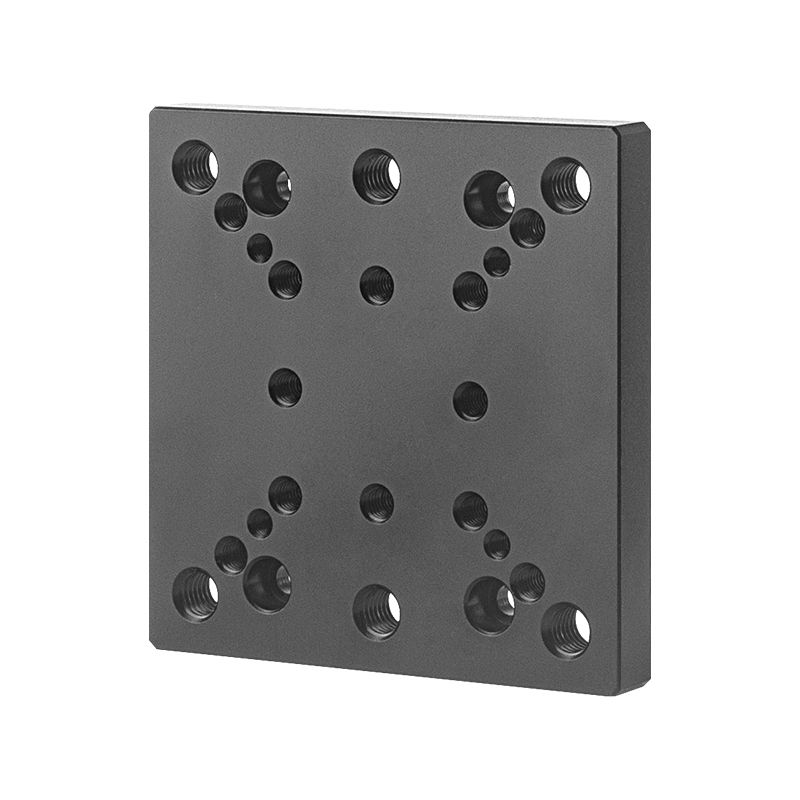

| 64*64mm | / | 8mm | Aluminum Alloy |

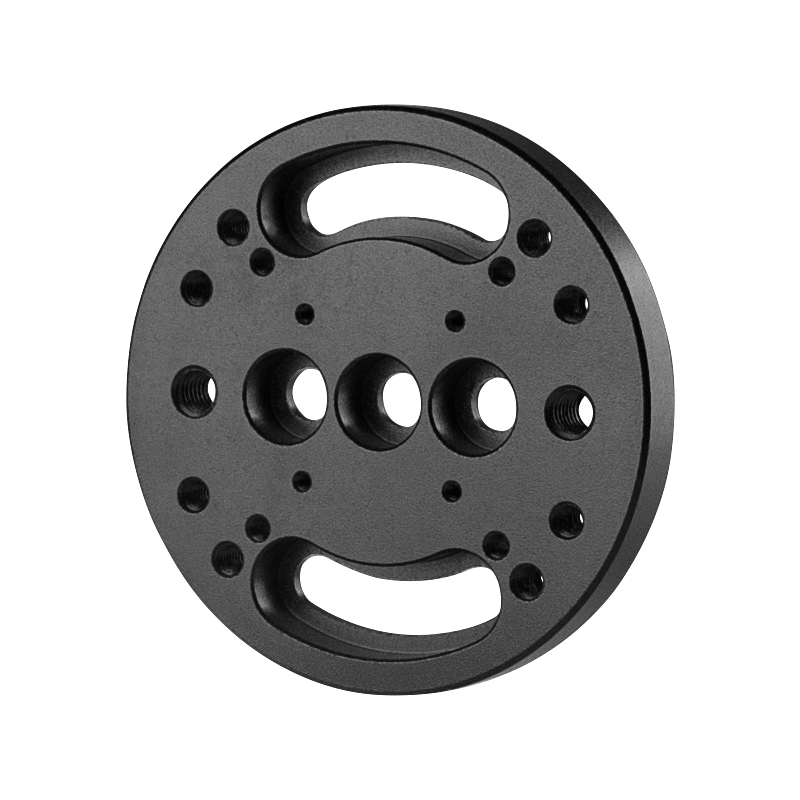

| ø69mm | M6 | 8mm | Aluminum Alloy |
| 70*70mm | M6 | 8mm | Aluminum Alloy |
| 76*64mm | / | 8mm | Aluminum Alloy |

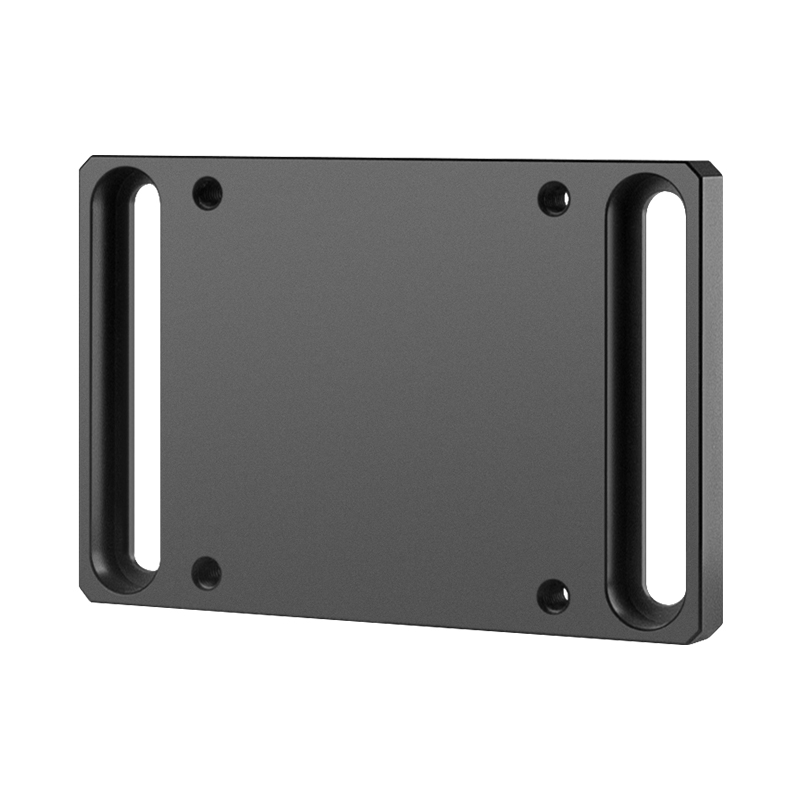

| 90*65mm | / | 8mm | Aluminum Alloy |
| 100*100mm | M6 | 10mm | Aluminum Alloy |

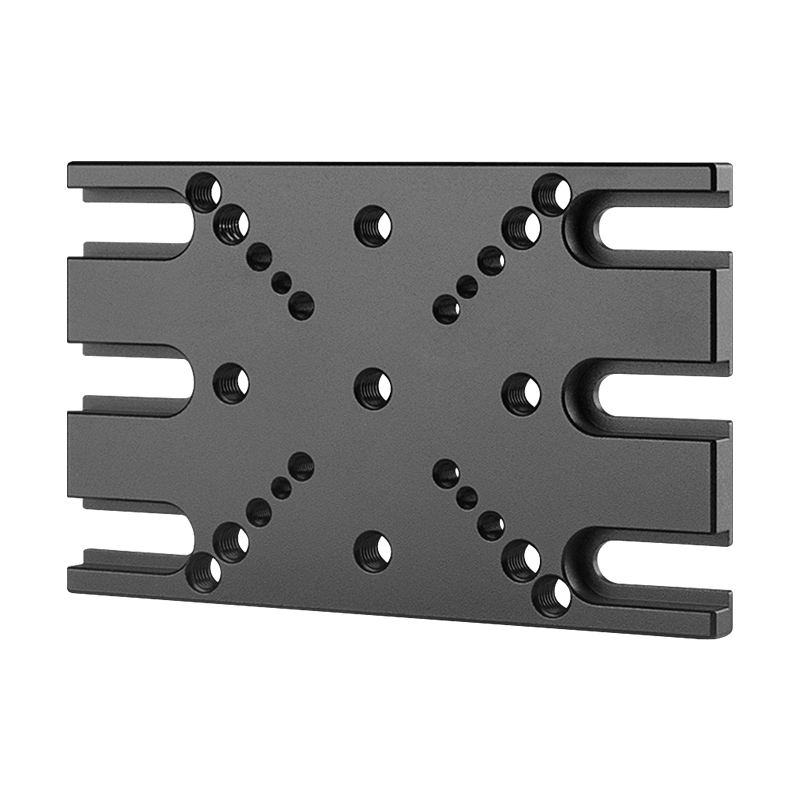

| 112*70mm | M6 | 8mm | Aluminum Alloy |

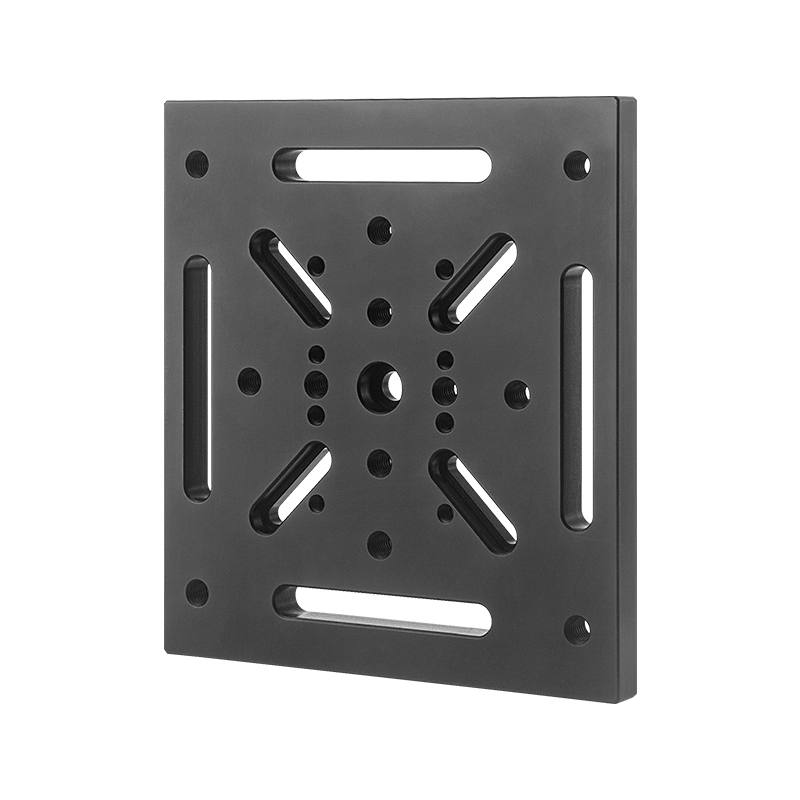

| 130*120mm | M6 | 10mm | Aluminum Alloy |
| 140*90mm | / | 10mm | Aluminum Alloy |
